| Algemeen |
| Processormodel | AMD Ryzen™ 7 5800X Processor, (8C/16T, 36 MB Cache, 4.7 GHz Boost) |
| Besturingssysteem | Windows 11 Pro |
| Software |
| Voorgeïnstalleerde software | 30 Dagen testversie voor Microsoft® 365 nieuwe klanten. |
| Processor |
| Processorfamilie | AMD Ryzen Threadripper |
| Aantal processorkernen | 24-Core |
| Geheugen |
| Intern geheugen | 64 GB |
| Geheugenlayout | 2 x 16 GB |
| Maximum intern geheugen | 128 GB |
| Kloksnelheid geheugen | . |
| Intern geheugentype | DDR5 SDRAM |
| Geheugenslots | 4 stuk(s) |
| Geheugen form factor | DIMM 288-PIN |
| Opslagmedia |
| Totale opslagcapaciteit | 500 GB |
| HDD interface | 4x SATA-3 (6 Gb/s) |
| Soorten RAID | RAID 1 RAID 10 |
| Geïntegreerde geheugenkaartlezer | SD/ SDHC/ SDXC |
| SSD interfaces | PCIe 5.0 |
| SSD capaciteit | 500 GB |
| HDD capaciteit | 1x 500 GB NVMe SSD |
| Aantal storage drives ondersteund | 4 x SATA-3 (6 Gb/s) 3 x M.2 1 x U.2 |
| Opslagmedia | SSD M.2 |
| Prestatie |
| Markt positionering | Workstation |
| Type product | Personal-Computer |
| Geluidsniveau | 25.9 dB(A) in operation office mode without ODD |
| Audio-uitgangskanalen | 5.1 HD Audio Codec |
| Chipset moederbord | AMD TRX50 |
| Audiosysteem | High Definition Audio |
| Design |

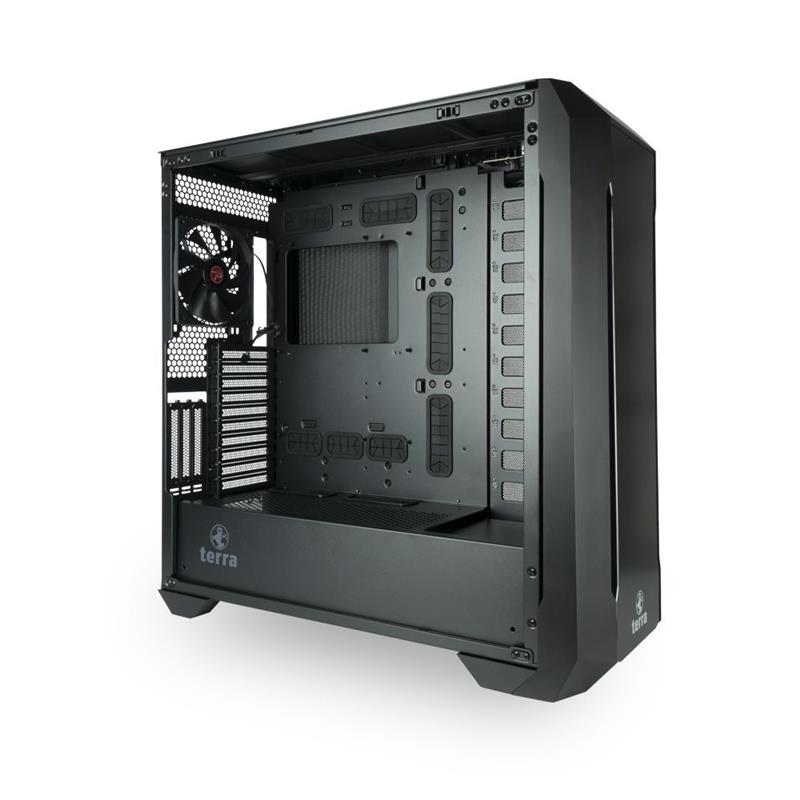

| Type behuizing | Towermodel |
| Certificering | Assemblierung volgens ISO9001 in Duitsland Compatibility: SMBios (DMI), EnergyStar (Valid only for U.S.), EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC |
| Toetsenbord formaat | Optioneel |
| Toetsenbord |
| Taal toetsenbord | optioneel |
| Technische details |
| Land | International |
| Toepassing | Autodesk 3ds Max Autodesk Maya Adobe Illustrator Autodesk AutoCAD |
| Inhoud van de verpakking |
| Meegeleverde accessoires | Handboek, voedingskabel |
| Uitbreidingsmodules |
| Uitbreidingsslots | 2 x PCIe 5.0 x16 slots1 x PCIe 5.0 x16 slot(x8 mode)1 x PCIe 4.0 x16 slot1 x PCIe 4.0 x16 slot(x4 mode) |
| Gewicht en omvang |
| Hoogte | 47 cm |
| Diepte | 49.2 cm |
| Gewicht | 21.5 kg |
| Overige specificaties |
| Aantal drive bays | 1 voor toegankelijk - 13.3 cm ( 5.25 ) 4 intern - 8.9 cm ( 3.5/ 2.5 met Adapter) 5 intern 6.4 cm (2.5 SSD) |
| Interface | 1 x DisplayPort 1 x HDMI 2 x LAN (RJ45) 1 x S/PDIF 5 x Audio 2 x USB 3.2 Gen 1 (up to 5Gbps) Type-A 4 x USB 3.2 Gen 2 (up to 10Gbps) Type-A 1 x USB 3.2 Gen 2 (up to 10Gbps) Type-C 1 x U.2 |
| Compatibele besturingssystemen | Windows 10, Windows 11 |
| Voldoet aan industriestandaarden | Dieses Gerät wird als informationstechnische Einrichtung (ITE) der Klasse B eingestuft und ist hauptsächlich für den Betrieb im Wohn- und Bürobereich vorgesehen. Durch das CE-Zeichen wird die Konformität mit den folgenden EU-Richtlinien bestätigt: (1) EMV-Richtlinie 2004/108/EG Elektromagnetische Verträglichkeit (2) Niederspannungsrichtlinie 2006/95/EG Elektrische Betriebsmittel zur Verwendung innerhalb bestimmter Spannungsgrenzen. |
| Muis |
| Inclusief muis | TERRA Wheel Mouse optical |
| Grafisch |
| Geheugen ingebouwde grafische adapter | 5 GB GDDR5 |
| Maximale resolutie ingebouwde grafische adapter | Digital Max Auflösung: 5120x2880 |
| On-board graphics adapter model | PCI Express - Plug in card - actief gekoeld - Single Slot NVIDIA Quadro P2000 |
| Aantal displayports grafische adapter | 4x Displaypoort (DP 1.4) 4x Display Port (DP 1.4) |
| Energie |
| Stroombron | 80 Plus gold voeding, geschikt voor 24/7 gebruik Efficiency : >= 90% |
| Stroomverbruik (in standby) | Ø 2.0 Watt (S3 Mode, Suspend to RAM, WOL geactiveerd) |
| Maximaal ingangsvermogen | 650 Watt |
| Voeding | Ø 50 Watt Long Idle-Mode Ø 176 kWh per jaar (TEC = Typical Energy Consumption) Voor verdere informatie ga je naar www.wortmann.de/green en/of in de Quicklinks van dit product (indien beschikbaar) |
| AC-adapter ingangsspanning | Wisselstroom 100/240 V ( 50/60 Hz ) |
| Eisen aan de omgeving |
| Bedrijfstemperatuur (T-T) | 10 °C - 35 °C |
| Aanbevolen relatieve luchtvochtigheid bij gebruik | 10-75% (niet condenserend ) |
| Netwerk |
| Ethernet LAN | Netwerkadapter - geïntegreerd |
| LAN controller | Marvell AQtion 10GB Intel I226-LM 2.5GB |
| Datalink-protocollen | Ethernet Fast Ethernet Gigabit Ethernet Fast ethernet Gigabit ethernet |
| Optische drive |
| Soort optische drive | DVD±RW |
| Invoerapparaat |
| Aansluiting | USB |
| Opmerkingen |
| Aanvullende informatie | *Het upgradeproces bevindt zich in de afrondingsfase en gaat naar verwachting eind 2021 van start. De precieze procedure en het tijdschema kunnen variëren naargelang het toestel. |
