Product: |

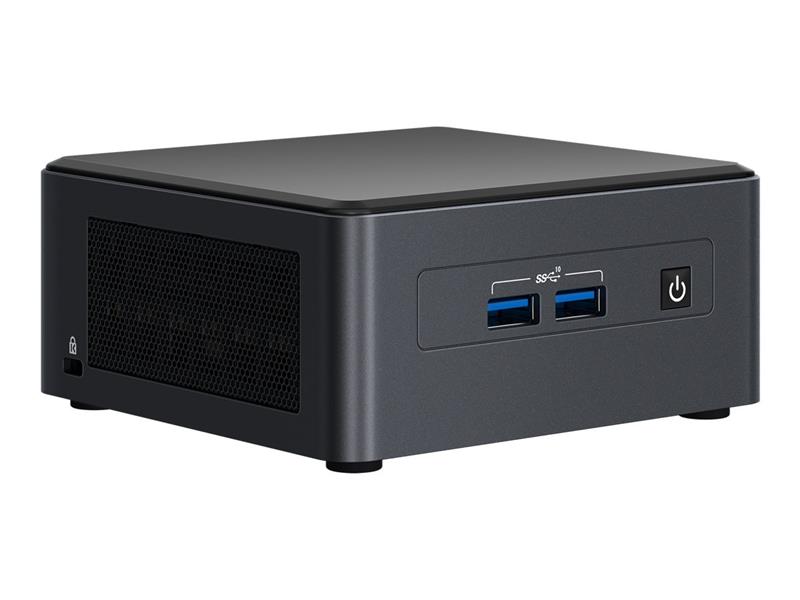

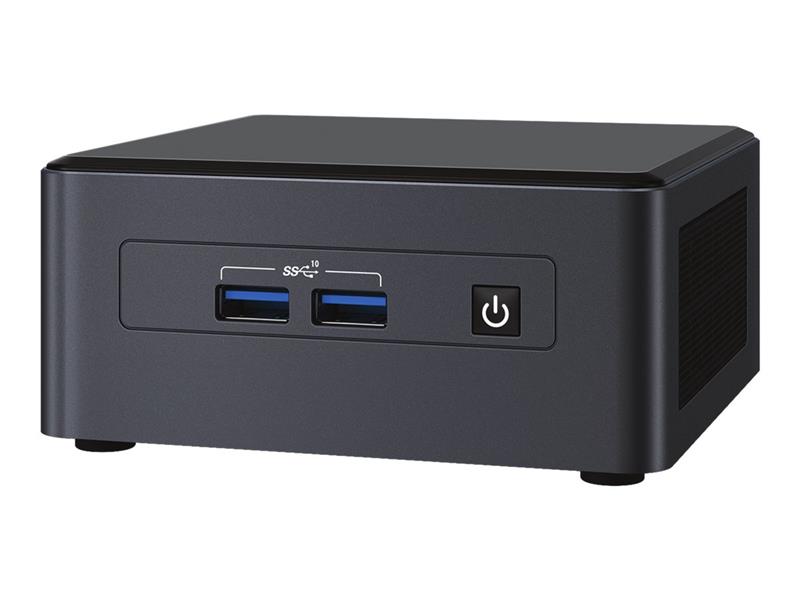

Productnaam: | INTEL NUC Barebone BNUC11TNHI50002 Core i5-1135G4 Pro Tall Kit EU-Cord |
Omschrijving: | Intel Next Unit of Computing Kit 11 Pro Kit - NUC11TNHi5 - Barebone - mini-PC - 1 x Core i5 1135G7 / 2.4 GHz - RAM 0 GB - Iris Xe Graphics - GigE, 2.5 GigE - WLAN: Bluetooth 5.0, 802.11a/b/g/n/ac/ax |
EAN code: | 5032037205054 |
Fabrikantsgarantie: | 36 maanden bring-in garantie |
Algemeen |
Type: | PC barebone |
Productvormfactor: | Mini-PC |
Lokalisatie: | Regio: Europa |
Processor / chipset |
CPU: | Intel Core i5 (11de Gen) 1135G7 / 2.4 GHz |
Max Turbo Speed: | 4.2 GHz |
Aantal kernen: | Quad-Core |
Aantal CPU: | 1 |
Max aantal CPU: | 1 |
Upgrademogelijkheid CPU: | Niet-upgradable |
Hoofdfuncties processor: | Intel Virtualization Technology, Intel AES New Instructions, Intel Virtualization Technology for Directed I/O, Intel Platform Trust Technology (PTT) |
Cachegeheugen |
Geïnstalleerde grootte: | 8 MB |
Cache per processor: | 8 MB |
RAM |
Grootte geïnstalleerd: | 0 GB / 64 GB (max.) |
Technologie: | DDR4 SDRAM |
Model: | SO DIMM 260-PIN |
Slots: | 2 (Totaal) / 2 (leeg) |
Voorzieningen: | Dubbelkanaals geheugenarchitectuur |
Vaste schijf |
Type: | Geen HDD |
Controller voor opslag |
Type: | 1 x SATA/NVMe |
Interfacetype controller: | SATA 6Gb/s / PCIe 4.0 x4 (NVMe) |
Optische opslag |
Type: | Geen optisch station |
Beeldscherm |
Type beeldscherm: | Geen |
Graphics controller |
Grafische processor: | Intel Iris Xe Graphics |
Video-interfaces: | HDMI, USB-C |
Max. aantal ondersteunde monitoren: | 4 |
Audio Output |
Uitvoermodus geluid: | 7.1 channel surround |
Conformiteitsnormen: | High Definition Audio |
Netwerkgebruik |
Ethernetcontroller: | Intel I225-LM |
Draadloze LAN ondersteund: | Ja |
Draadloos NIC: | Intel Wi-Fi 6 AX 201 |
Protocol voor gegevenskoppeling: | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
Conformiteitsnormen: | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
Uitbreiding / Aansluiting |
Bays: | 1 (totaal) / 1 (vrij) x intern 2.5" |
Slots: | 1 (totaal) / 1 (vrij) x M.2 Card - 2280 (Key M) 1 (totaal) / 1 (vrij) x M.2 Card - 2242 (Key B) 1 (totaal) / 0 (vrij) x M.2 Card - 2230 (Key E) 1 (totaal) / 1 (vrij) x uitbreidingssleuf |
Interfaces: | 1 x Thunderbolt 4/DisplayPort 1.4a/USB4 2 x HDMI 1 x LAN (2.5Gigabit Ethernet) 3 x USB 3.2 Gen 2 - Type A (2 aan de voorkant, 1 aan de achterkant) 1 x USB 2.0 - Type A (1 achter) 1 x Thunderbolt 3/DisplayPort 1.4a/USB4 |
Diversen |
Conformiteitsnormen: | ACPI, CISPR 24, ICES-003, EN55024, FCC Part 15 B, FCC Part 15 C, AS/NZS 4268, FCC Part 15 E, BSMI CNS 13438, REACH, EN 62311, EN 300.440, China RoHS, EN 300 328, EN 301 489-1, KN32, KN35, AS/NZS 2772.2, EN 301 893, IEC/EN/UL 60950-1, CISPR 32, EN 55032, EN 301 489-3, EU RoHS, IEC/EN/UL 62368-1, EN 301 489-17, ARPANSA, Taiwan BSMI RoHS, AS/NZS CISPR 32, VCCI 32, DisplayPort 1.4a |
Stroom |
Type apparaat: | Netspanningsadapter |
Vereiste netspanning: | DC 12 - 24 V |
Garantie van de fabrikant |
Service & Support: | Beperkte garantie - 3 jaar |
Afmetingen & gewicht |
Breedte: | 11.2 cm |
Diepte: | 11.7 cm |
Hoogte: | 5.4 cm |
Omgevingsparameters |
Min. gebruikstemperatuur: | 0 °C |
Max. gebruikstemperatuur: | 40 °C |
