3 liter Mini PC with An Extra PCI-e x 16 Slot Supports Flexibility in Edge Computing
IoT applications in the manufacturing industry have increased the needs for equipment and machinery networking, fast-response sensors, data acquisition, and more. Therefore, PCIe becomes a vital feature for platform compatibility.

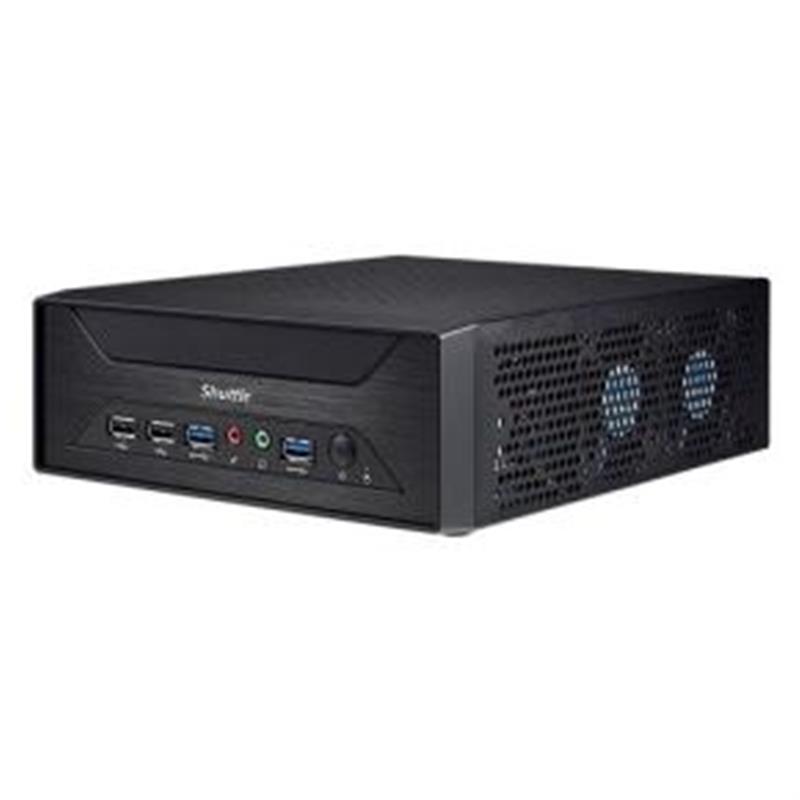

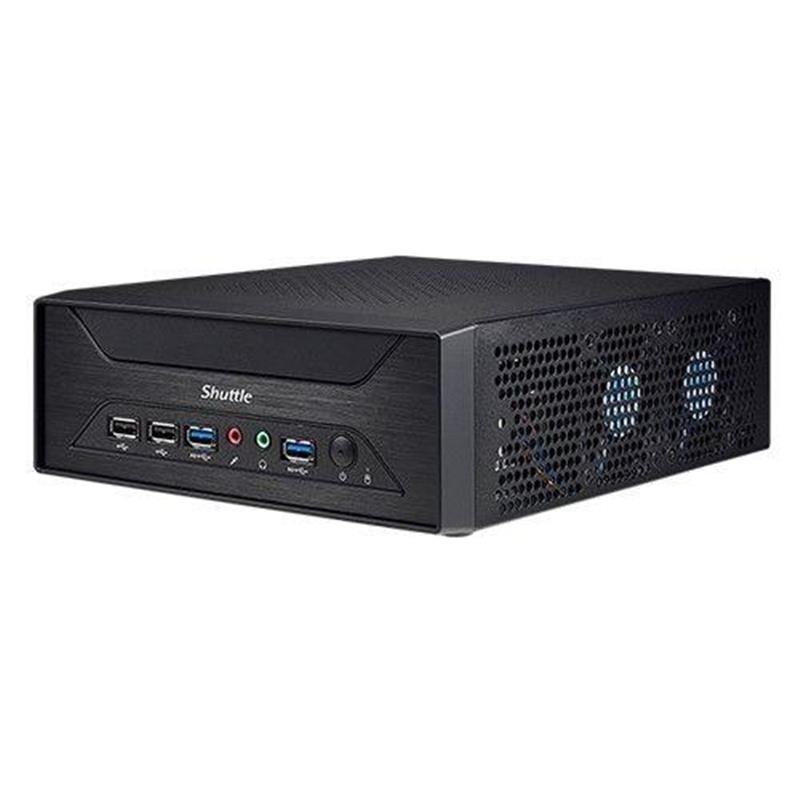

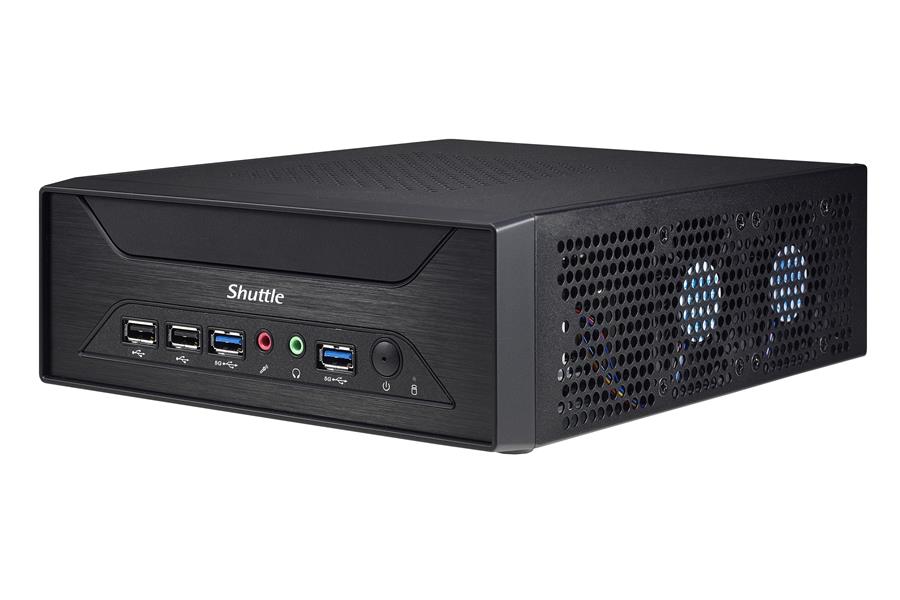

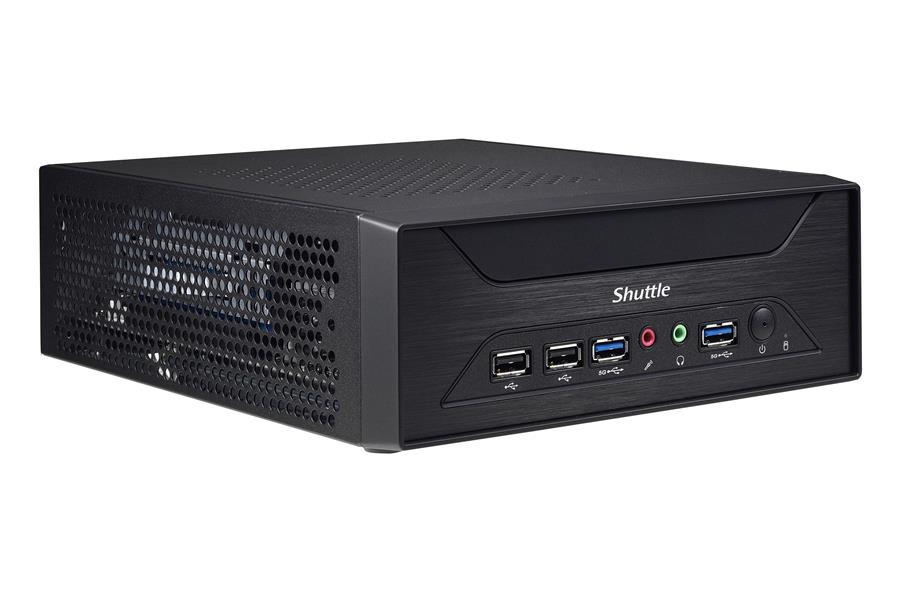

Thanks to Shuttle Slim XPC XH510G, a well-designed mini PC for commercial and industrial applications. With a PCIe expansion slot included, it provides installing add-on cards to meet diverse circumstances. Equipped with Intel® H510 chipset and compatible with Intel® 11th Gen Rocket-Lake platform, XH510G supports up to 8 cores and 16 threads for high-performance computing and 4K UHD content. Besides, it features rich I/O capabilities in a compact size, offering USB 3.2 Gen 1, USB 2.0, M.2, an Intel® Gigabit LAN, an HDMI 2.0, and a DisplayPort.
By taking advantage of VESA mount capability, the model can be attached to a wall mount or a monitor mount for space-constrained applications. In sum, XH510G is a standout performance for Data Acquisition System (DAQ), Digital Motion Control, Surveillance, and Kiosk.
Intel® 11th Generation Core™ processor
Equipped with Intel® H510 express chipset, XH510G supports Intel® 10/11th generation Core™ series, Pentium ®, and Celeron® processors, delivers high-performance CPU computes with AI acceleration. To handle high loads effortlessly, the processor supports up to 64GB (32GBx2) of DDR4-3200 memory speeds. Besides, provides 4K UHD resolution content via the integrated Intel® UHD graphics 750.
Dual-Display Productivity
XH510G supports two displays simultaneously via one HDMI 2.0 and one DisplayPort 1.4, providing productivity benefits and dynamic visualization for industrial and commercial applications.
Integrated PCI-E x16 slot
The built-in PCI-e x 16 expansion slot can be installed in various add-on cards such as capture card, sound card, USB card, RS232 card, PoE card, digital I/O card, and more.
*Support maximum size: 208.5mm x 120mm x 30mm
Strong Expansion Capacity with M.2
XH510G is equipped with couple of M.2 slots. Two M.2 2280 Type M for the user to expand storage or device. One M.2 2230 Type E slot for installing Wi-Fi and Bluetooth modules provides higher transmission bandwidth.
* M.2 M key slot in the bottom side only supports SATA Gen 3.0
Powerful Connectivity with High-Speed Gigabit LAN

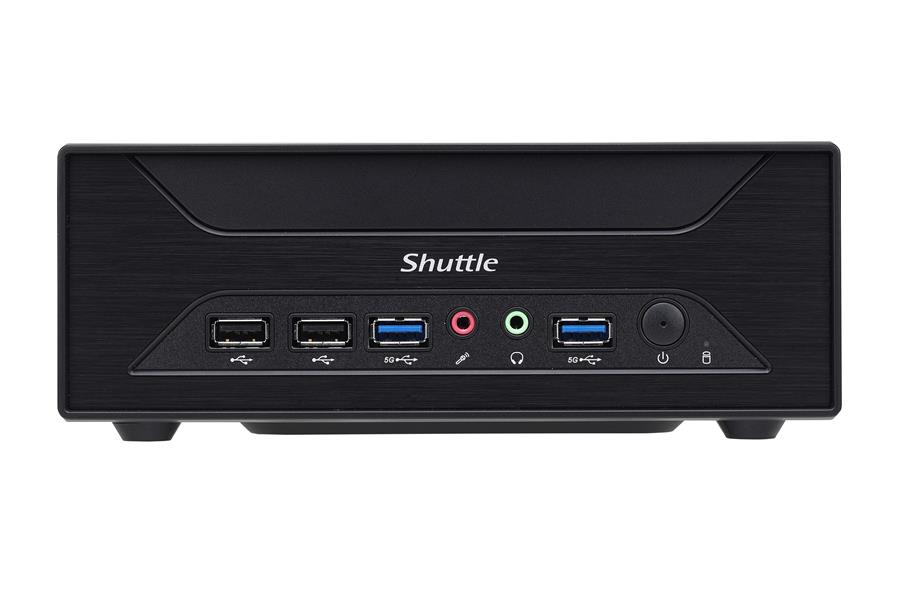

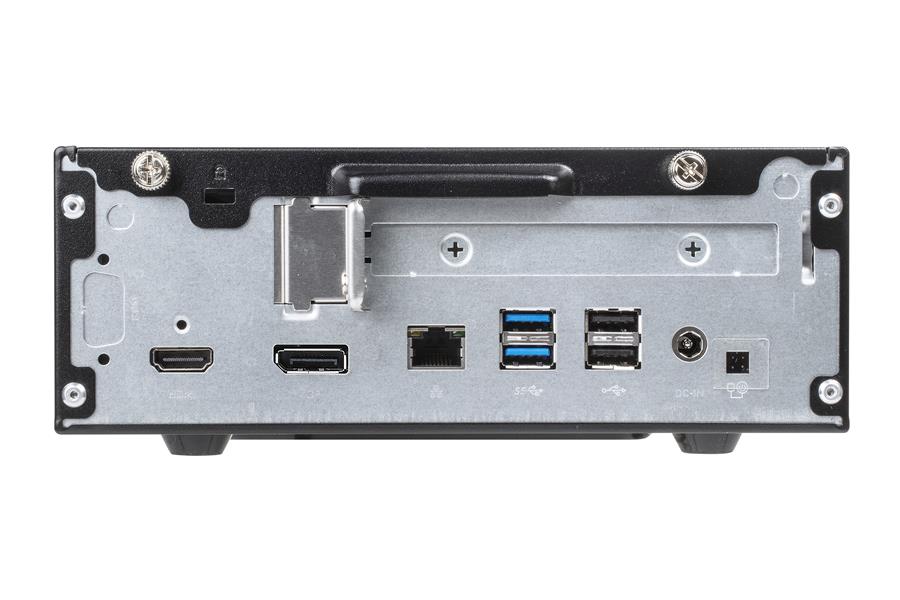

The XH510G provides four USB 3.2 Gen 1, four USB 2.0, a SATA Gen 3.0, and a built-in Intel® Gigabit LAN that supports Wake on LAN to provide high-speed data transfer capability. Besides, an optional RS232 can be chosen to connect peripherals.
Exclusive Cooling Technology
XGH510G features Shuttle’s exclusive heat pipe cooling module with a smart fan design. The precise vent design allows constant air circulation between inside and outside of the machine, resulting in high stability and low noise for 24/7 long-term operation. The XH510G adopts industrial capacitors to meet the 0 - 50 â°C environmental operation demands of commercial applications.
Operating System Support
- Windows 11 64bit
- Windows 10 64bit
- Linux
